Sound Reinforcement Design

Vocals

• 24 Countryman B3 mic elements (various mounting methods: earpieces, elastic halos, threaded through hair)
• 4 Shure UR4D wireless receivers, 20 Shure SLX wireless receivers
• Behringer X32 (with about 20 programmed DCA scenes) for vocal mics
• Central 2-speaker cluster for vocal reinforcement

Band

• ~12-person band in orchestra pit
• 3 DIs (keyboard, bass, guitar)
• 3 mics (area mic over brass, area mic over winds, snare drum mic on drumset)
• 6 channels on analog sound board for mixing band (feeding two output channels into Behringer X32)
• 2 speakers on either side of stage for band

Sound Effects

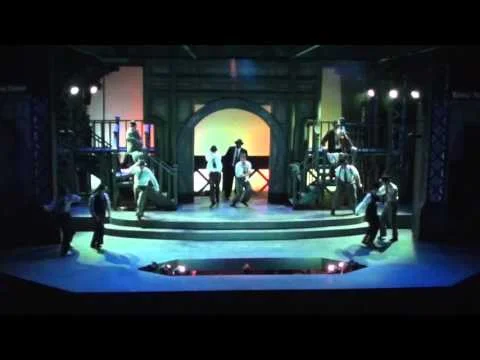

In this production, Big Jule fires his gun and it ricochets around in the sewer. I created this sound for the effect by layering several found sounds, along with a series of fades to different speakers so the sound would "move" around the house. See it in action below:

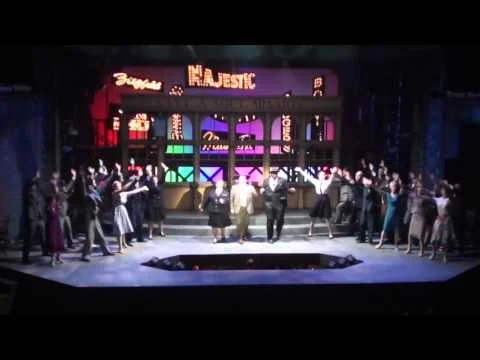

Used for the police raid on the Mission at the end of Act 1. See it in action below:

Something going horribly wrong in Joey Biltmore's Garage, over the phone. Created by layering a number of found sounds.

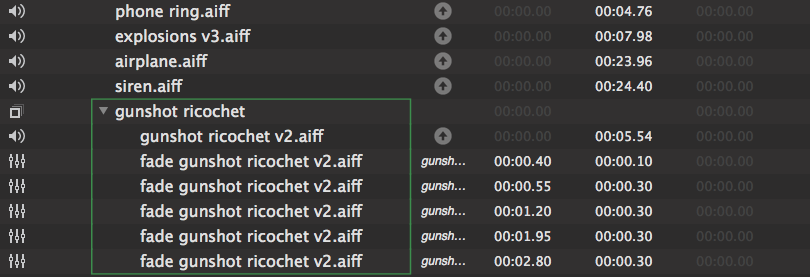

Programming in QLab 3

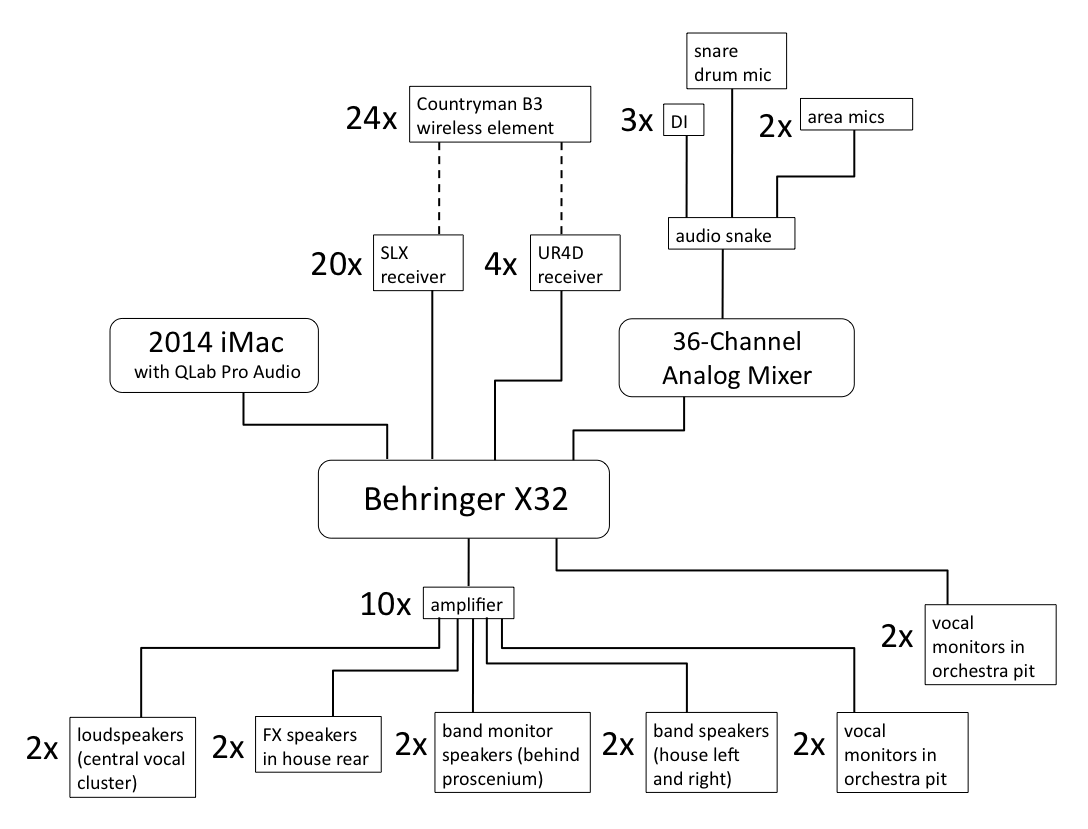

System Diagram

Backstage Systems

Clearcom Headset Locations

• SM in booth
• Stage right & left ASMs
• Light board operator
• Flyrail operator
• Left & right spotlight operators in booth
• Conductor in orchestra pit

Audio Monitors

• 2 speakers on either side behind proscenium (as band monitors for actors)
• 4 small speakers in orchestra pit (as vocal monitors)
